Understanding Linux 32-bit Memory Layout and Page Table Storage

Exploring Page Tables and Memory Layout

Introduction

In modern operating systems, memory management is a critical component that ensures efficient and secure access to physical memory. Central to this management is the page table, a data structure that maps virtual addresses used by processes to physical addresses in RAM.

This blog post explores where page tables are stored in Linux, focusing on 32-bit systems, and provides a hands-on approach to visualizing the entire memory layout, including both user and kernel spaces.

Virtual Memory in 32-bit Linux

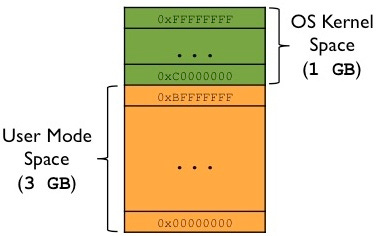

On a 32-bit system, the total addressable virtual memory space is 4GB. Linux divides this space into two parts:

• User Space: The lower 3GB (0x00000000 to 0xBFFFFFFF) is reserved for user processes.

• Kernel Space: The upper 1GB (0xC0000000 to 0xFFFFFFFF) is reserved for the kernel.

This split ensures that kernel code and data are protected from user processes while allowing the kernel to access the entire system's resources.

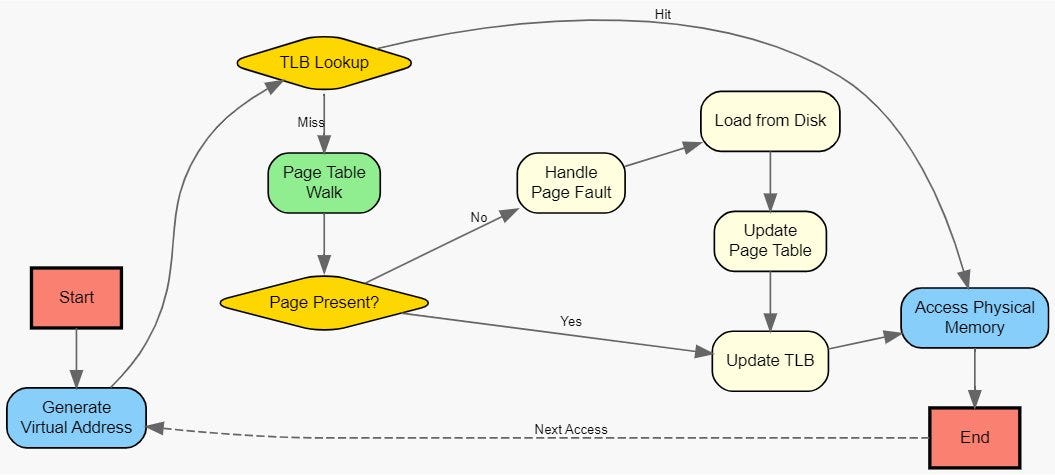

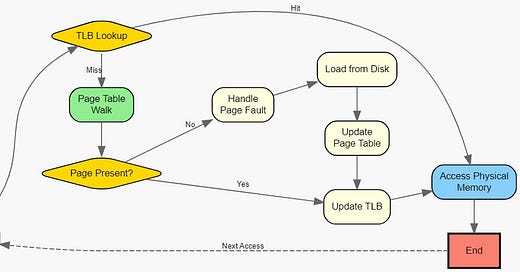

Page Tables and Their Role

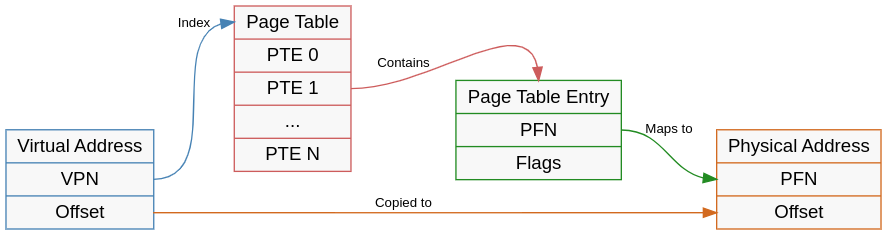

Page tables translate virtual addresses to physical addresses. On 32-bit x86 systems without Physical Address Extension (PAE):

• The page directory (one per process) contains 1024 entries (PDEs), each pointing to a page table.

• Each page table contains 1024 entries (PTEs), each mapping a 4KB page (or a 4MB page if using Page Size Extension, PSE).

The kernel maintains its page tables in the upper 1GB, shared across all processes. Each process has its page directory, but the kernel portion (upper 256 PDEs) remains consistent.

Viewing the Memory Layout

While tools like /proc/pid/maps show user-space mappings, they omit kernel-space. To inspect the full layout, we need to:

1. Access the page directory via the CR3 register (holds the physical address of the current process's page directory).

2. Traverse the page tables to determine memory regions and their attributes.

Kernel Module for Memory Inspection

We’ll write a kernel module to:

• Read the CR3 register.

• Map the page directory into kernel memory.

• Traverse PDEs and PTEs to generate a memory map.

Code: Kernel Module to Dump Memory Layout

Prerequisites

• A 32-bit Linux system (PAE disabled for simplicity).

• Kernel headers installed.

• Basic understanding of kernel module development.

Module Code

#include <linux/module.h> #include <linux/kernel.h> #include <linux/init.h> #include <linux/mm.h> #include <linux/io.h>  typedef unsigned int pd_entry_t; // Page Directory Entry (32-bit) typedef unsigned int pt_entry_t; // Page Table Entry (32-bit)  static int __init memmap_init(void) {     unsigned long cr3 = read_cr3(); // Get page directory's physical address     pd_entry_t *page_dir = ioremap(cr3, 4096); // Map to kernel virtual address      if (!page_dir) {         printk(KERN_ERR "Failed to map page directory\n");         return -ENOMEM;     }      printk(KERN_INFO "Memory map:\n");      for (int i = 0; i < 1024; i++) { // Iterate all 1024 PDEs         pd_entry_t pde = page_dir[i];          if (!(pde & 1)) { // PDE not present             printk(".");         } else {             if (pde & 0x80) { // 4MB page                 if (pde & 0x004) { // User page                     if (pde & 0x002) printk("*"); // Read/write                     else printk("R");                 } else printk("X"); // Supervisor             } else { // Page table (4KB pages)                 unsigned long pt_phys = pde & 0xFFFFF000;                 pt_entry_t *page_table = ioremap(pt_phys, 4096);                  if (!page_table) {                     printk("?");                     continue;                 }                  char symbol = '.'; // Default: no present pages                 for (int j = 0; j < 1024; j++) { // Check PTEs                     pt_entry_t pte = page_table[j];                     if (pte & 1) { // Page present                         if (pte & 0x004) { // User page                             if (pte & 0x002) symbol = '+'; // Read/write                             else symbol = 'r';                         } else symbol = 'x'; // Supervisor                         break; // Check only first present PTE                     }                 }                 printk("%c", symbol);                 iounmap(page_table);             }         }          if (i % 64 == 63) printk("\n"); // Newline every 64 entries     }      iounmap(page_dir);     return 0; }  static void __exit memmap_exit(void) {     printk(KERN_INFO "Module unloaded\n"); }  module_init(memmap_init); module_exit(memmap_exit); MODULE_LICENSE("GPL");

---

Compiling and Running the Module

1. Save the Code

Save the code as memmap.c.

2. Create a Makefile

obj-m += memmap.o all:     make -C /lib/modules/$(shell uname -r)/build M=$(PWD) modules clean:     make -C /lib/modules/$(shell uname -r)/build M=$(PWD) clean

3. Compile the Module

$ make

4. Insert the Module

$ sudo insmod memmap.ko

5. View Output

$ dmesg | tail -n 30

---

Example Output and Interpretation

Sample Output

Memory map: ................................r............................... ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ...............................+..............................+. xXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXxX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX..x...........................xx

Key to Symbols

• .: Unmapped region.

• X: 4MB kernel (supervisor) page.

• R: 4MB user read-only page.

• *: 4MB user read/write page.

• x: Page table with supervisor pages.

• r: Page table with user read-only pages.

• +: Page table with user read/write pages.

Analysis

• User Space (First 768 Entries): Mostly unmapped (.) with small regions for code (r), data (+), and libraries.

• Kernel Space (Last 256 Entries): Dominated by X (4MB kernel pages) and x (page tables for kernel data).

---

Conclusion

The page tables in 32-bit Linux are stored in physical memory, referenced by the CR3 register. By traversing the page directory and tables, we can visualize the memory layout, revealing how user and kernel spaces coexist. The provided module offers a practical way to inspect this layout, crucial for understanding system internals and debugging.
